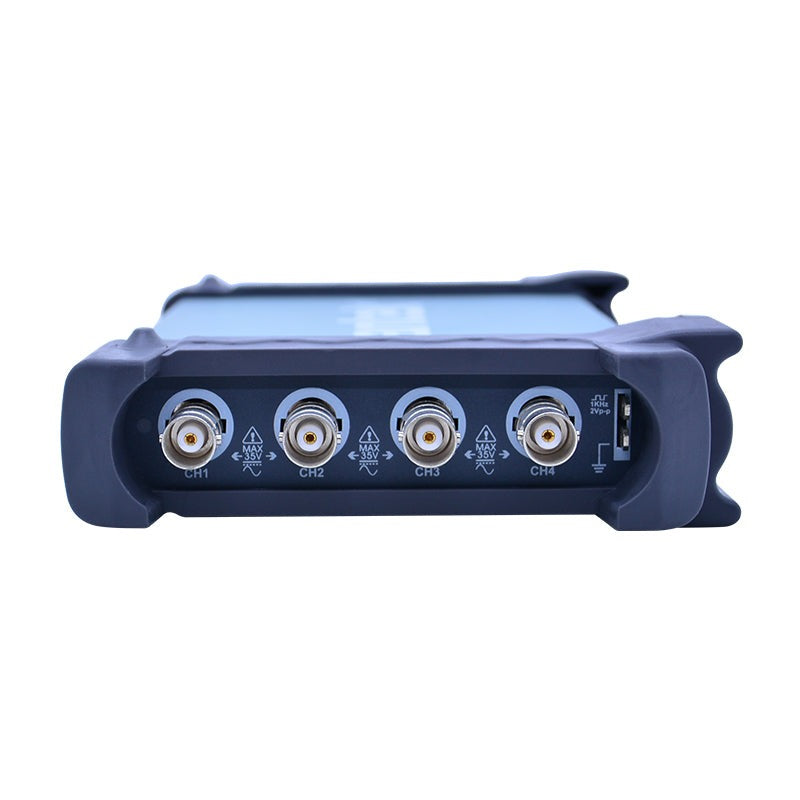

(Package IV) Hantek 6074BE USB Automotive Diagnostic Oscilloscope 70MHz 4 Channel



Please Note: This price is for 6074BE Kit IV. Please check below form carefully!!!



Hantek6074BE Accessory Kit

Model No.

Accessory

Paper  case

Aluminum case

HT18A

HT19

HT201

HT25

HT30A

HT301

HT307

HT308

HT310

HT324

CC-65

CC-650

6074BE KitⅠ

1

0

1

1

0

1

1

0

1

0

0

3

0

0

6074BE Kit Ⅱ

0

1

2

2

2

1

4

1

1

0

0

2

0

0

6074BE Kit Ⅲ

0

1

4

4

4

4

4

1

1

4

1

2

0

0

6074BE Kit Ⅳ

0

1

4

4

4

4

4

1

1

4

1

2

1

1



Hantek6074BE Series Kit

Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2.0 interface plug and play, and no need extra power supply; Support tablet PC; Support WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance; Support USBXI, easy to operate. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, easy for carrying. Dynamic cursor tracking, waveform record and replay function.



Feature

Standard equipped over 80 types of automotive measurement function;First Diagnosis: Intake manifold vacuum  ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: primary and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;Performer: Petrol/Diesel

Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.

USB 2.0 interface plug and play, and no need extra power supply;

Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,

The waveform data could be output to EXCEL,BMP,JPG.

Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y display.

FFT spectrum analyzer

One computer could connect with multiple oscilloscopes, expand the channel number easily.

Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples



Specification:

Model

Hantek6074BE KIT IV

Bandwidth

70MHz

Automotive Measurement Function

Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition;

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;

CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;

Performer: Petrol/Diesel;

Starter and charging circuits

Channel

4 CH

Real-time Sampling Rate

1GSa/s

Memory Depth

64K

Time Base Precision

+/-50ppm

Time Base Range

2ns/div-1000s/div (1-2-4 sequences)

Input Impedance

1M25pF

Input Sensitivity

2mV/div10V/div

Vertical Resolution

8Bit

Vertical Displacement Range

2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe

DC Gain Accuracy

+/-3%

Bandwidth

20MHz

Trigger Mode

Edge, Pulse, Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform Signal Process

+,-,x,÷,FFT, Invert

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle





Packing List:
1x 6074BE oscilloscope
1x USB Cable
1x Software CD
1x HT307
4x HT18A
4x HT19
4x HT25
4x HT30A
2x HT324
4x HT201
1x HT301
4x HT308
1x HT310
1x CC-65
1x CC-650
1x Metal Case
